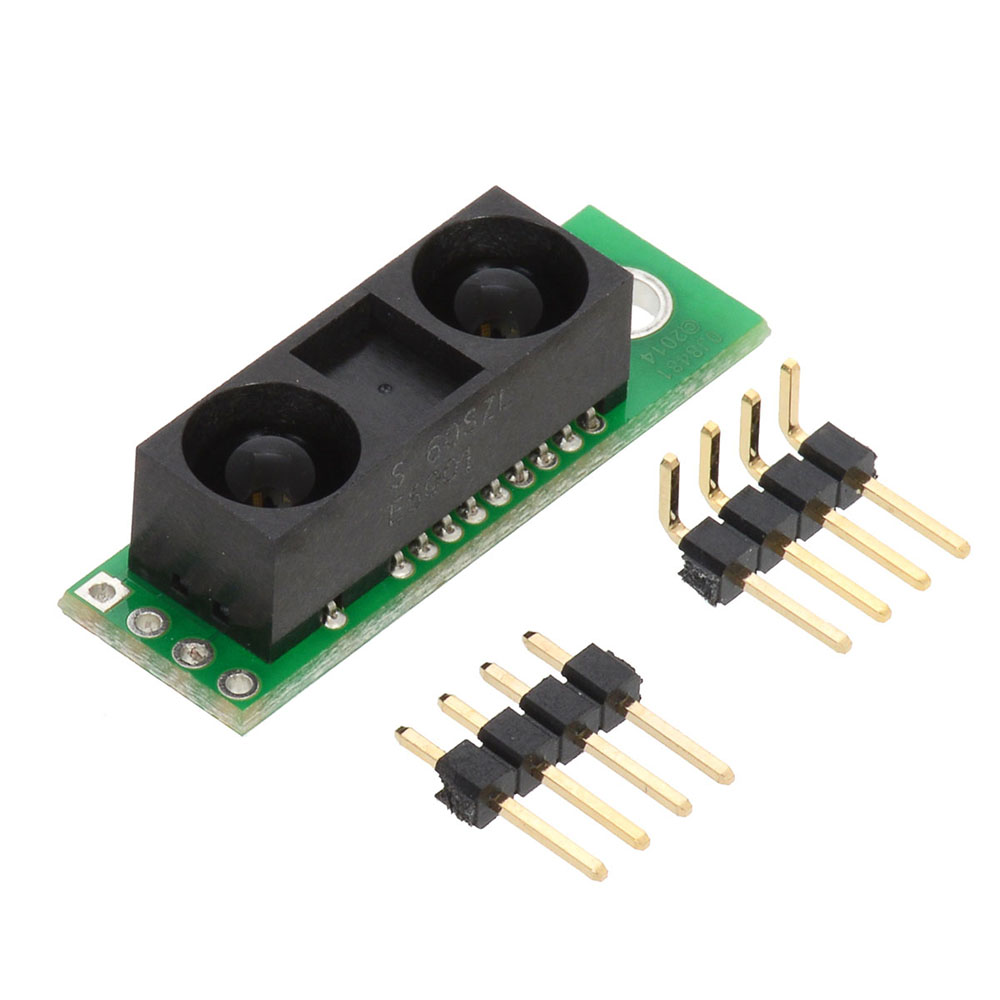

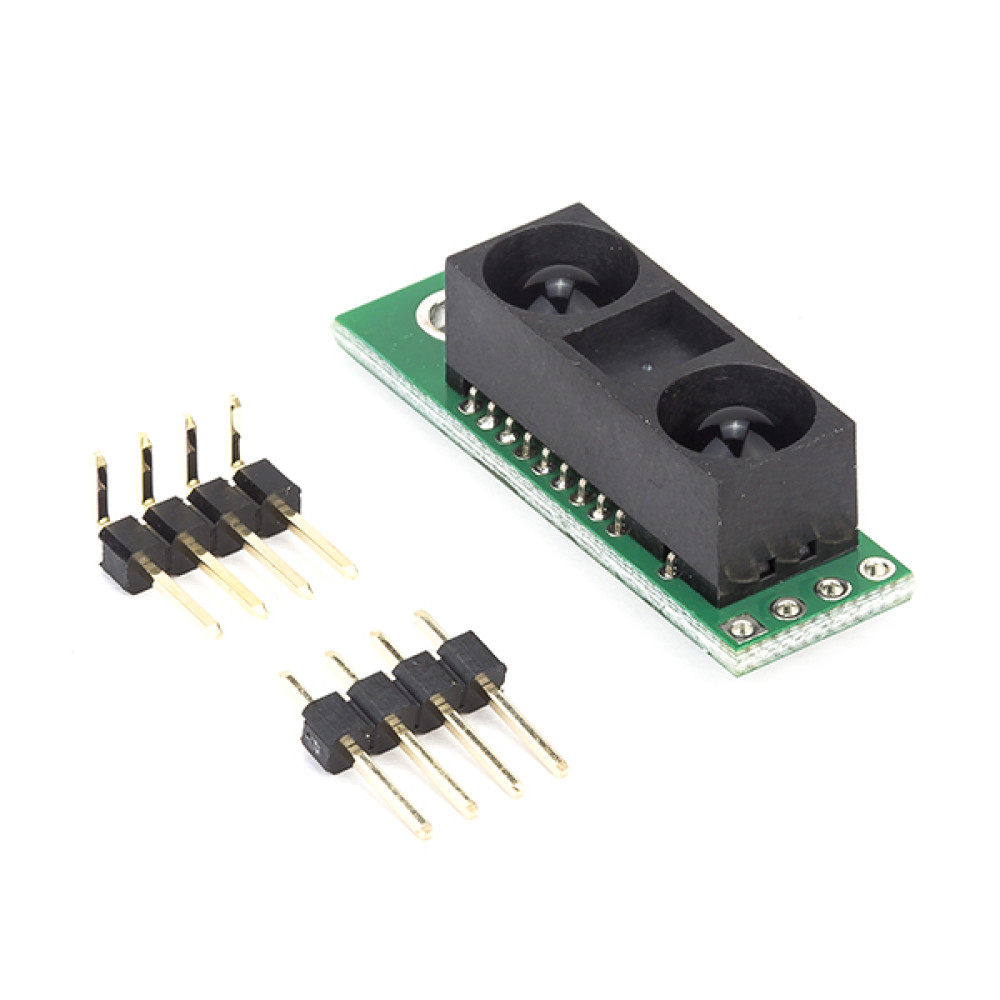

Sharp/Socle GP2Y0A60S Analog Distance Sensor 10-150cm, 5V/3V
Feature summary
Operating voltage:

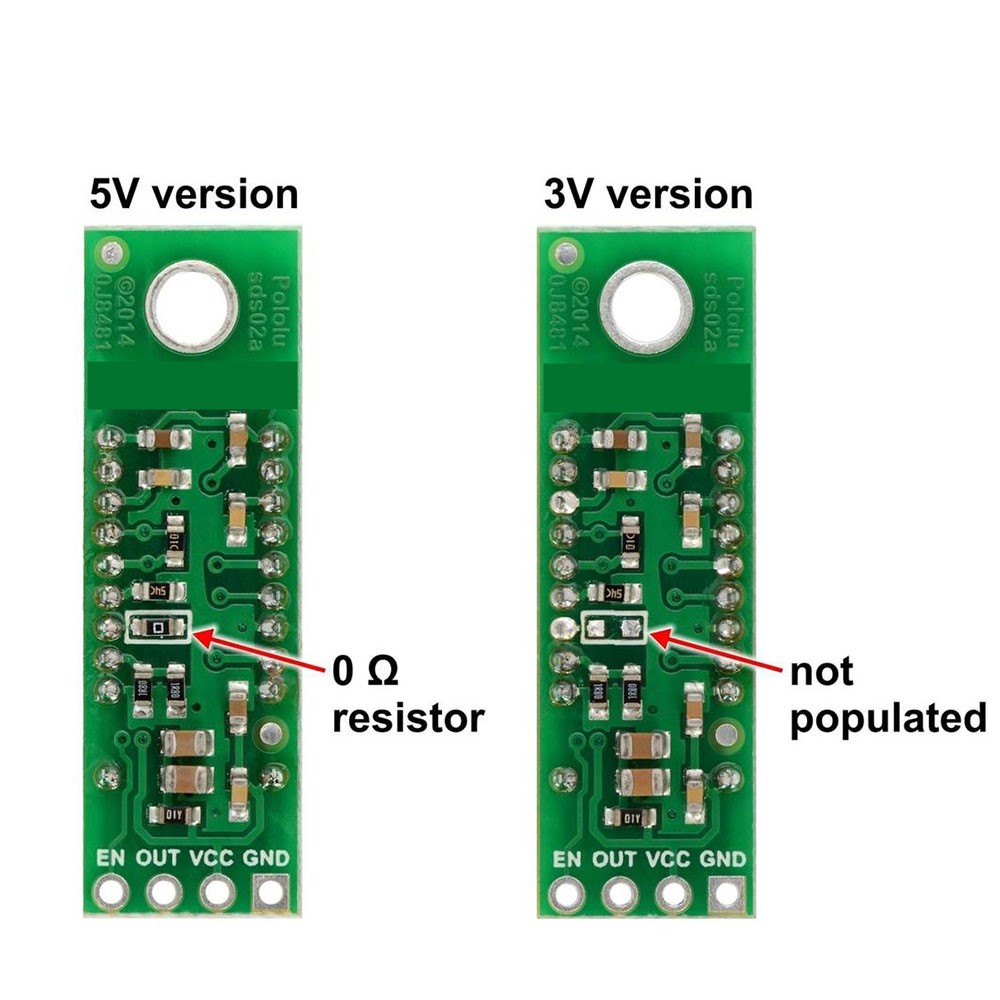

5V version: 2.7 V to 5.5 V
3V version: 2.7 V to 3.6 V
Average current consumption: 33 mA (typical)
Distance measuring range: 10 cm to 150 cm (4″ to 60″)
Output type: analog voltage
Output voltage differential over distance range:
5V version: 3.0 V (typical)
3V version: 1.6 V (typical)
Update period: 16.5 ± 4 ms
Enable pin can optionally be used to disable the emitter and save power

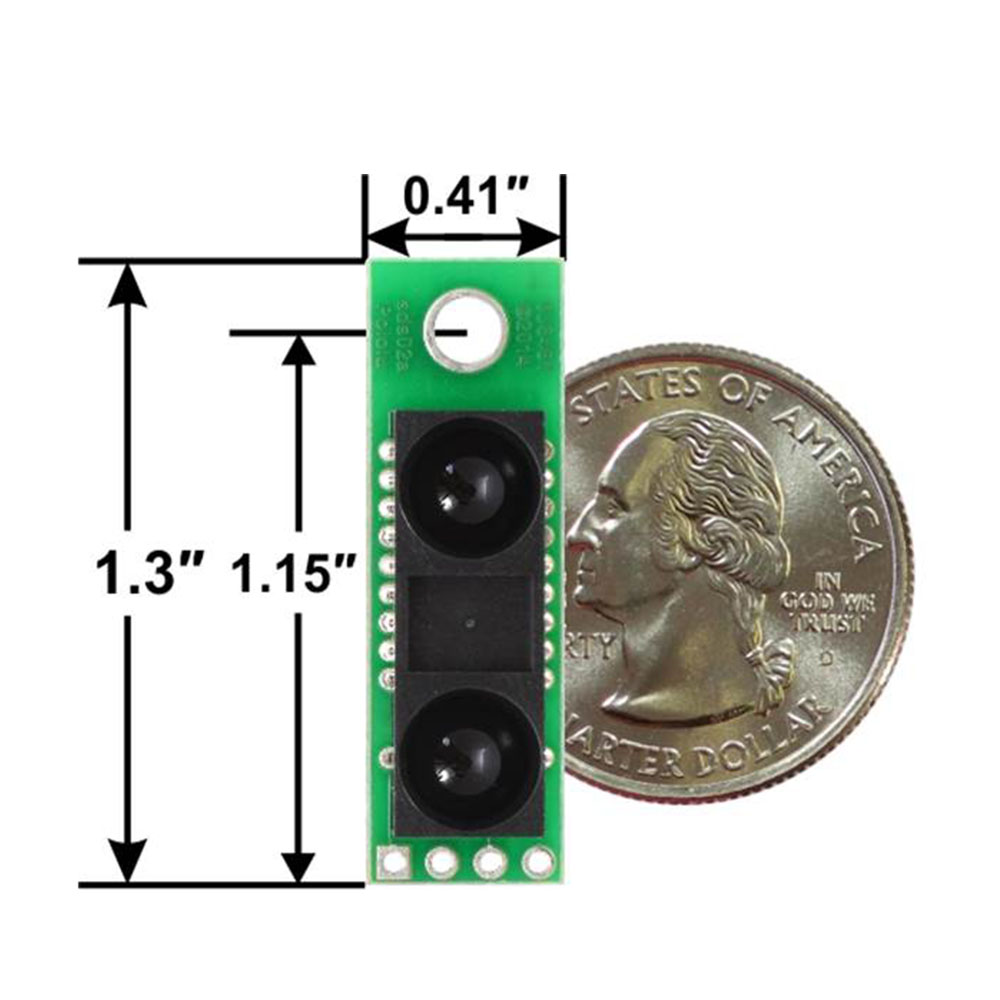

Size without header pins: 33 mm × 10.4 mm × 10.2 mm (1.3″ × 0.41″ × 0.4″)
Weight without header pins: 2.5 g (0.09 oz)
